EDAN iM-Series

iM-Series (80/70/60/50)

Proprietary algorithms and technology, which are scientifically validated and optimised, forms the foundation of the iM series, ensuring reliable and  accurate measurements. These include:

  • iSEAPTM ECG monitoring algorithm with 33 types of arrhythmia detections,
  • SEMIP® ECG diagnosis algorithm with 208 findings,
  • iMATTM SpO2 algorithm and iCUFSTM NIBP algorithm.



With a wide range of optional parameters including IBP, Cardiac Output, Capnography and Anaesthesia Gas, the iM-series Patient Monitors are able to satisfy most clinical demands in general wards, cardiac units, intensive and high-care units and operating theatres.





Enquire

More Information

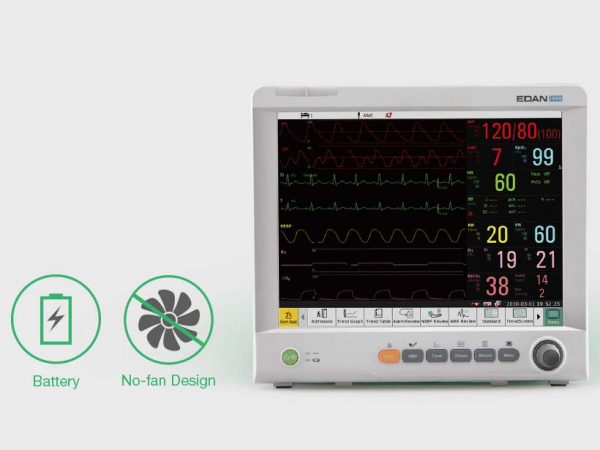

iM80
The iM80 offers exceptional accuracy for use in critical care departments. Its user-friendly interface ensures easy access to the latest medical and information technology.

Features:
15″ Colour TFT-LCD screen
Simultaneous display of up to 13 waveforms

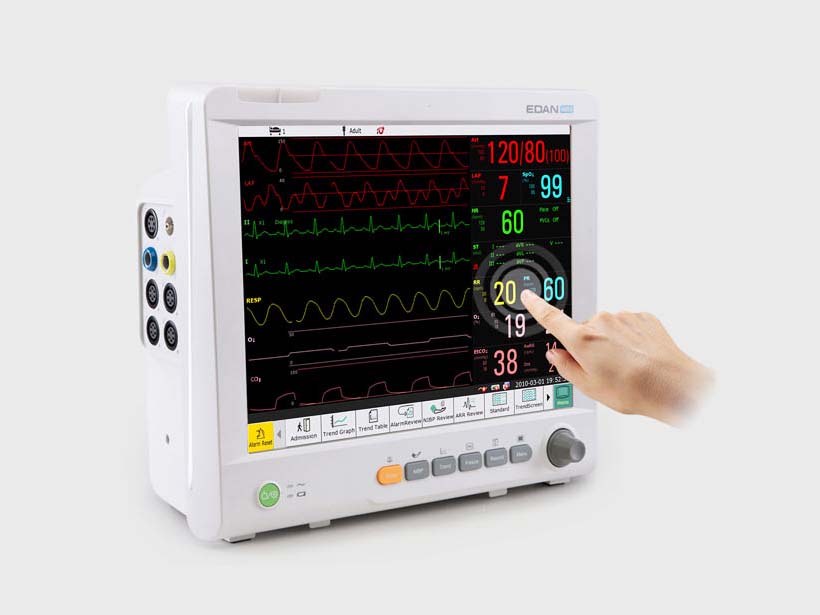

Intuitive operation by clicking on a parameter or waveform to configure it
Pacemaker detection
No Electrosurgical interference
Pulse tone modulation
Unique iSEAP ECG algorithm optimised for arrhythmia patients
Dual-mode, non-interference pulse oximetry
Clinically validated NIBP
Nurse call function
VGA output
Supports HL7 via XML files
2x Rechargeable batteries
Suitable for adult, paediatric and neonatal patients





iM70

Features:
12.1″ Colour TFT-LCD screen
Multiple display modes
Simultaneous display of up to 11 waveforms
Intuitive operation by clicking on a parameter or waveform to configure it
Pacemaker detection
No Electrosurgical interference
Pulse tone modulation
iSEAP ECG algorithm optimised for arrhythmia patients
iMAT SpO2 algorithm with outstanding motion tolerance and low perfusion performance
iCUFS NIBP algorithm optimised for cardiac, hypertensive and neonatal patients
Nurse call function
VGA output
Supports HL7 via XML files
Built-in Wi-Fi
Thermal Printer
Suitable for adult, paediatric and neonatal patients



iM60

10.4″ Colour TFT-LCD screen
Multiple display modes
Simultaneous display of up to 11 waveforms
Intuitive operation by clicking on a parameter or waveform to configure it
Pacemaker detection
No Electrosurgical interference
Pulse tone modulation
iSEAP ECG algorithm optimised for arrhythmia patients
iMAT SpO2 algorithm with outstanding motion tolerance and low perfusion performance
iCUFS NIBP algorithm optimised for cardiac, hypertensive and neonatal patients
Nurse call function
VGA output
Supports HL7 via XML files
Built-in Wi-Fi
Thermal Printer
Suitable for adult, paediatric and neonatal patients



iM50
Portable Patient Monitor with Easy Remote Access

Features:
8.4″ Colour TFT-LCD screen
Various display modes
Simultaneous display of up to 11 waveforms
Intuitive operation by clicking on a parameter or waveform to configure it
Pacemaker detection
No Electrosurgical interference
Pulse tone modulation
Unique iSEAP ECG algorithm optimised for arrhythmia patients
Dual-mode, non-interference pulse oximetry
Clinically validated NIBP
Nurse call function
VGA output
Supports HL7 via XML files
Rechargeable Li-Ion battery (up to 7 hours)
Suitable for adult, paediatric and neonatal patients
Carry bag

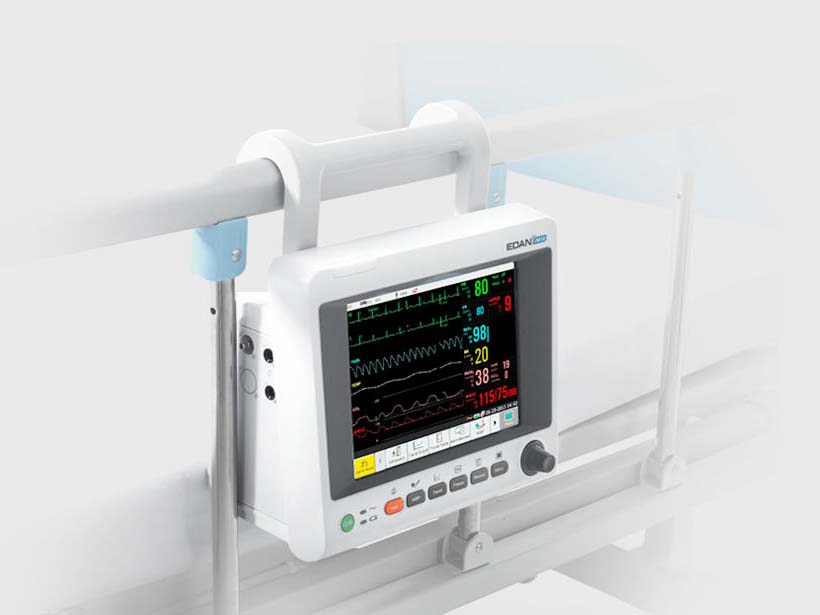

Bed rail hook
Portable design (3.6 kg)

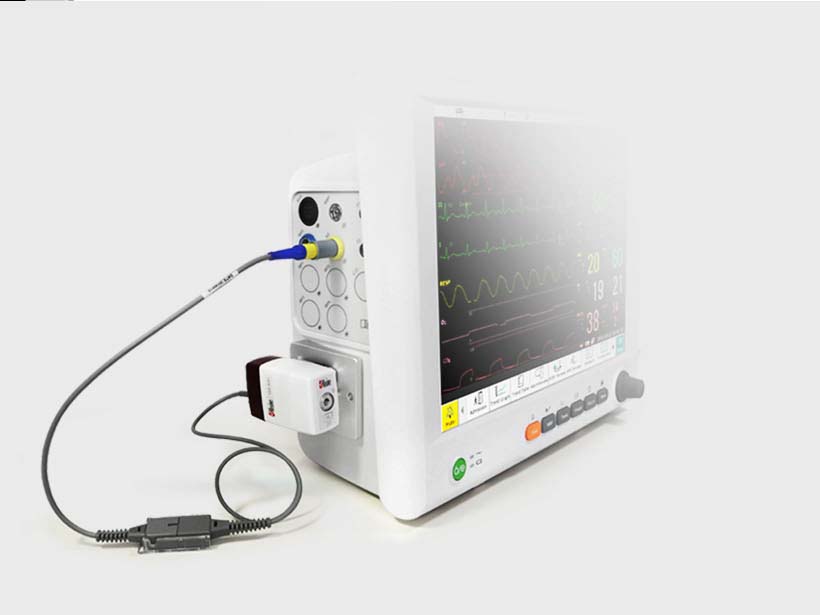

Gas Monitoring
Multiple gas modules are available for all iM-Series Patient Monitors, including Edan G2 CO2, Respironics CO2, Masimo AG, and Drager AG.

A full set of mounting solutions are provided to suit various application requirements
